Recycle Water System 150m³/Day

SPECIFICATION

1.                 Recycle water system

                             Design  Base on

System

Machine                          :             Ultration system (UF System)

Capacity                          :             150 m³/Day or 7.5 m³/hr

Operation                       :             Fully automatic

                            Water quality

                          pH                                        :             6.0-8.0

                          TSS                                       :             < 1.0

                          TDS                                      :             < 1,500 ppm

                          Turbidity                            :             < 50 NTU

                          Color (Pt-Co unti)           :             <15

                          Conductivity (µS/cm)    :             < 2,500

                           E-coil (per 100 ml)        :             Not Detect

This Machine consists of :

              1.1        Feed Pump  (Run 1 Stand by 1)                                                      2 SETS
              1.2        UF Supply Pump  (Run 1 Stand by 1)                                             2 SETS
              1.3        Water  Supply Pump  (Run 1 Stand by 1)                                       2 SETS
              1.4        Pre – Sediment Filter   7.5-10m3/hr                                              1 SET
              1.5        Multimedia Filter (MMF)                                                                   1 SET                                    1.6        Post – Sediment Filter   7.5-10m3/hr                                             1 SET
              1.7        Pre-Cholrine Dosing System                                                             1 SET

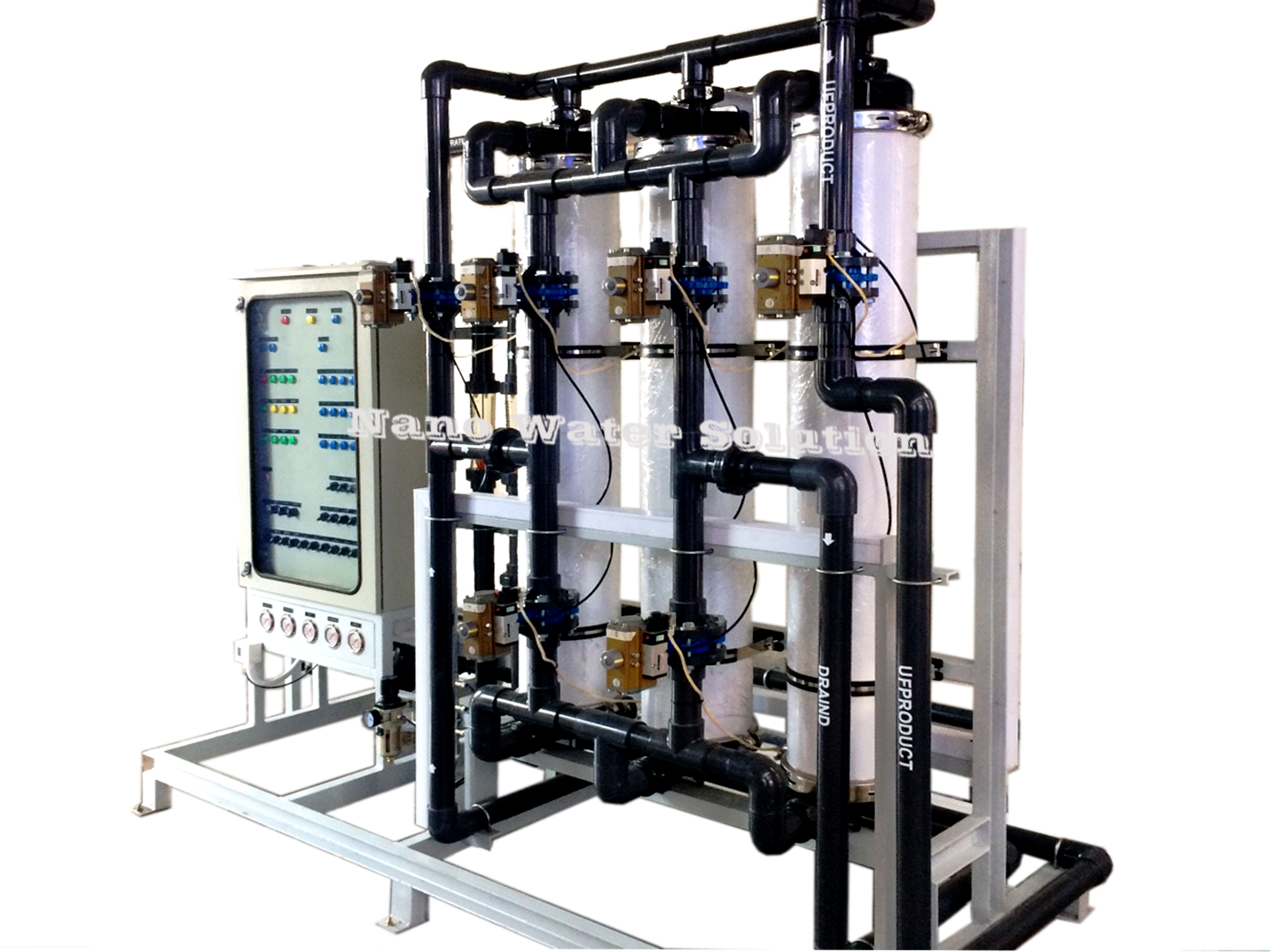

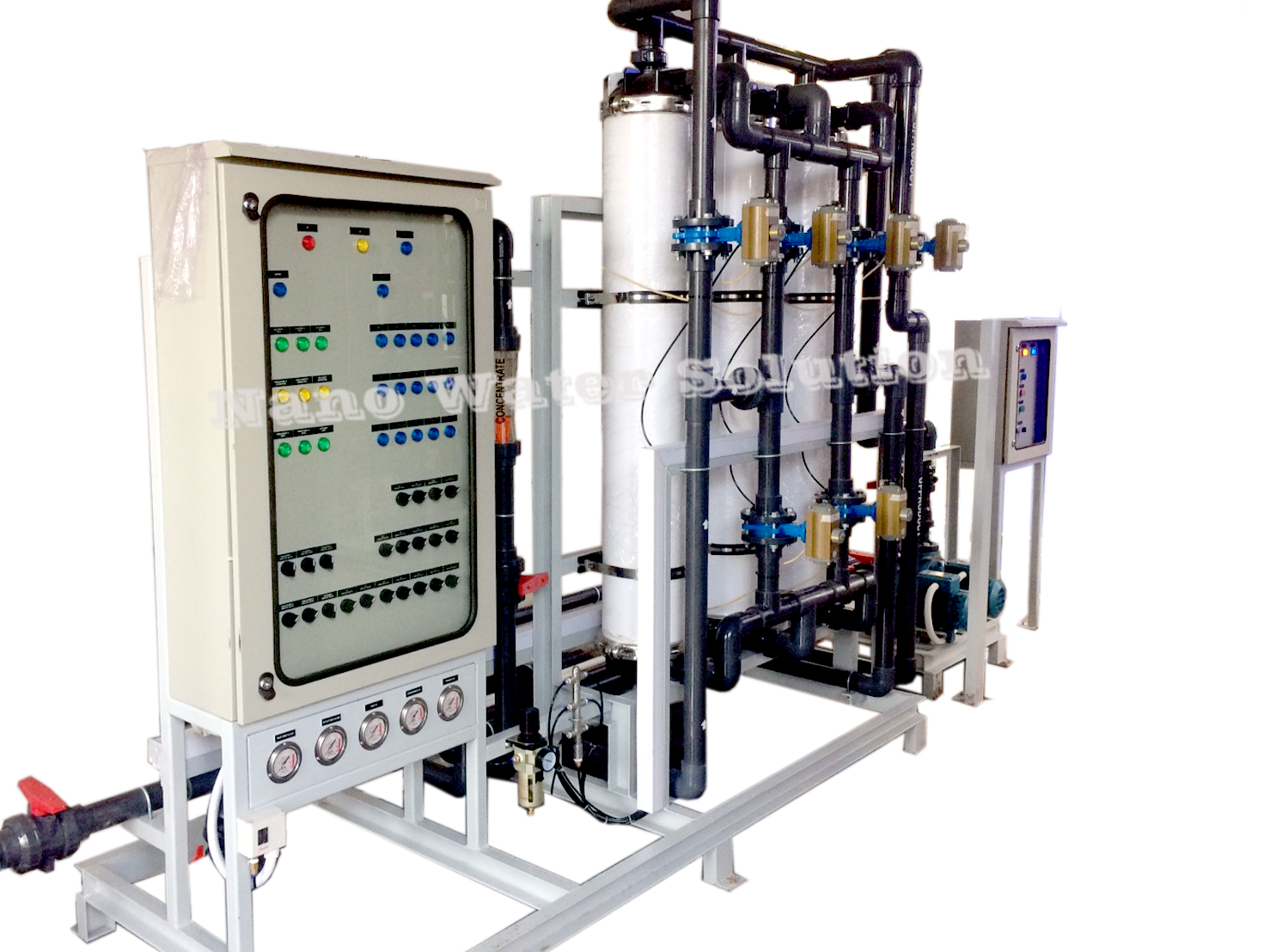

              1.8        UF Machine                                                                                        1 SET

                           1.8.1      Membrane Filter 10” x 60”                                                2 Modules

                           1.8.2      Feed Flow Meter                                                                 1 Set

                           1.8.3      Permeate Flow Meter                                                         1 Set

                           1.8.4      Concentrate Flow Meter                                                    1 Set

                           1.8.5      Pressure Transmitter for UF feed pump                            1 Set

                           1.8.6      Feed Pressure Indicator                                                     1 Set
                           1.8.7      Permeate  Pressure Indicator                                            1 Set
                           1.8.8      Piping & Valve System                                                        1 Lot
                           1.8.9      Structure & Frame                                                              1 Set

              1.9        Back wash&CIP System                                                                    1 SET

              1.10      Post-Chlorine Dosing System                                                           1 SET

              1.11      Piping & Valve (Working)                                                                  1 LOT

              1.12      Activated Carbon                                                                               1 SET

              1.13      Electrical Control Panel                                                                     1 SET

              1.14      Raw  Water  Storage Tank                                                                 1 SET

              1.15      UF  Water  Storage Tank                                                                   1 SET

              1.16      Reused  Water  Storage Tank                                                           1 SET
